Details

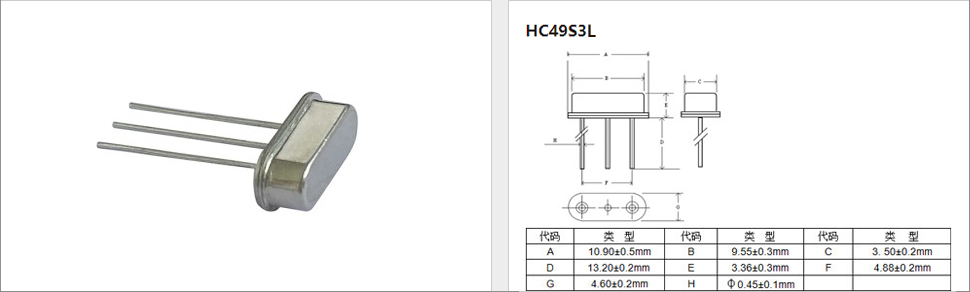

| model | HC-49S-3L |
| Frequency range | 3.579MHz-99MHz |
| Adjust the frequency offset(25℃） | ±30ppm |
| Temperature frequency difference | ±30ppm |
| Operating temperature range | -20℃/70℃，-10℃/60℃； |
| Years of aging rate(25℃） | Every year the biggest±5ppm |
| Storage temperature range | -40℃/85℃ |
| The static capacitance | The highest7pf |
| Insulation resistance | 100v ±10v Tributary voltage minimum500M? |
| Incentive electricity rate | The minimum 100 μw |
| The load capacitance | In series，16pf,18pf,20pf,30pf,32pf |
